Product

Water SCADA & Telemetry

The CiQ.400 series of products are specifically designed for water operators of all sizes, including rural water, municipality, agricultural, and large commercial operators. The CiQ.400 telemetry hardware has a wide range of options to meet any budget. It is designed to work independently or fully integrate existing supervisory control and data acquisition (SCADA) systems.

Water SCADA and telemetry are meant to make your water operations run more efficiently, and they happen to be our specialty at Rugged Telemetry. The following is a rundown of the different solutions we offer in the CiQ.400 series of products to help your water operations stay on track. Find the solution that works best for your operation below!

CiQ.400

The 400 has the same functionality as the 300 tank series but with an enhanced touch screen UI — ideal for tank sites with AC power. Consider this solution for water SCADA and telemetry systems that need a powerful and easy-to-use interface.

Specifications

The CiQ.400 comes with a polycarbonate enclosure with dimensions of 14 x 12 x 6. The series' communication is compatible with satellite or hybrid configurations.

The CiQ.400 series has an input voltage of AC 100 (240 V), an input voltage range of AC 90, 264 V (DC 125:375 V), and a nominal mains frequency range of 47, 63 Hz (0 Hz).The CiQ.400 includes a 5-inch touch screen PLC and a tank.

The series products also have two analog in sensor inputs, ten digital inputs, eight digital relay outputs, and two digital NPNs.

CiQ.420

The 420 is configured for a pump or PRV with enhanced controls over the 300 series for powerful water SCADA and telemetry operations. The enhanced rules are DNO (Do Not Operate) settings for counties with power restrictions during specific hours. It can also cycle lead and lag pumps to get the equal operating time and enhanced controls for VFD with multiple operating modes.

Specifications

The CiQ.420 model comes equipped with a protective polycarbonate enclosure that measures 14 x 12 x 6. This series is compatible with satellite and hybrid (LTE & Satellite) communication systems.

The CiQ.420 series has an input voltage of AC 100 (240 V) and an input voltage range of AC 90, 264 V (DC 125:375 V). In addition, this series has a nominal mains frequency range of 47, 63 Hz (0 Hz).

The CiQ.420 has several helpful features: a 5-inch touch screen PLC, two pumps and valves, two flow meters, 1 suction pressure, 1 discharge pressure, and 2 run status.

Rugged Telemetry's 420 series includes four analog sensor inputs, four analog outputs, eight digital inputs, and eight digital outputs.

CiQ.300

CiQ.310/315

CiQ.400

CiQ.420

Series

Description

CiQ.300

The 300 series is our tank level monitor / controller that is compatible with any of the PRV or Booster systems.

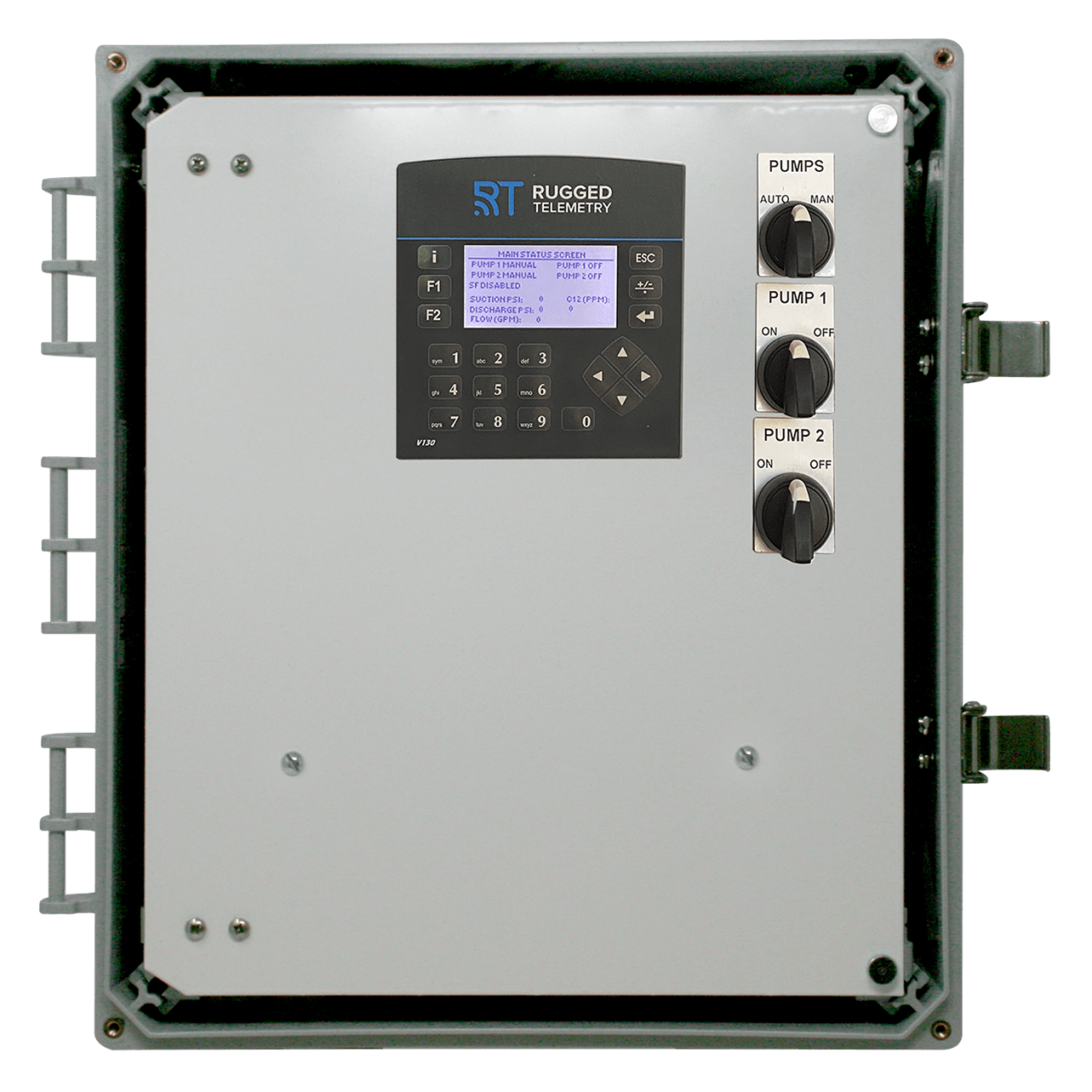

CiQ.310/315

The 310 and 315 are both designed to control water flow stations. The 310 is for PRV stations and the 315 is designed for booster stations. They both have optional exterior switches for control.

CiQ.400

The 400 has all the same functionality as the 300 tank series but with an enhanced touch screen UI. Ideal for tank sites that have AC power.

CiQ.420

The 420 can be configured for a Pump or PRV with enhanced controls over the 300 series. The enhanced controls are DNO settings (Do not Operate) for counties that have power restrictions during certain ours. It also has the ability to cycle lead and lag pumps, so they get equal operating time along with enhanced controls for VFD that have multiple operating modes.

Ordering Codes

The following grid serves as a guide through the CiQ.300 and 400 model codes. Give us a call, and we can help match you up with the best solution for your water SCADA and telemetry operations.

CiQ.300.TANK.SAT

- CiQ SCADA tank controller
- Satellite communications

CiQ.300.TANK.HYB

- CiQ SCADA tank controller
- Hybrid communications

CiQ.300.TANK.SAT.SOLAR

- CiQ SCADA tank controller
- Satellite communications
- Solar configuration
- No power supply or battery backup

CiQ.300.TANK.HYB.SOLAR

- CiQ SCADA tank controller
- Hybrid communications
- Solar configuration
- No power supply or battery backup

CiQ.310.BOOST.SAT

- 14” x 12” x 6” CiQ SCADA booster controller
- Satellite communications

CiQ.310.BOOST.HYB

- 14” x 12” x 6” CiQ SCADA booster controller
- Hybrid communications

CiQ.310.BOOST.SAT.SW

- 16” x 14” x 7” CiQ SCADA booster controller
- Satellite communications
- Panel switches

CiQ.310.BOOST.HYB.SW

- 16” x 14” x 7” CiQ SCADA booster controller
- Hybrid communications
- Panel switches

CiQ.315.PRV.SAT

- 14” x 12” x 6” CiQ SCADA PRV controller
- Satellite communications

CiQ.315.PRV.HYB

- 14” x 12” x 6” CiQ SCADA PRV controller
- Hybrid communications

CiQ.315.PRV.SAT.SW

- 16” x 14” x 7” CiQ SCADA PRV controller
- Satellite communications
- Panel switches

CiQ.315.PRV.HYB.SW

- 16” x 14” x 7” CiQ SCADA PRV controller
- Hybrid communications
- Panel switches

CiQ.400.TANK.SAT

- 14” x 12” x 6” CiQ SCADA tank controller
- Satellite communications
- 5" HMI

CiQ.400.TANK.HYB

- 14” x 12” x 6” CiQ SCADA tank controller
- Hybrid communications
- 5" HMI

CiQ.400.TANK.SAT.SOLAR

- 14” x 12” x 6” CiQ SCADA tank controller
- SAT communications
- 5" HMI
- Solar configuration
- No power supply or battery backup

CiQ.400.TANK.HYB.SOLAR

- 14” x 12” x 6” CiQ SCADA tank controller
- Hybrid communications
- 5" HMI
- Solar configuration
- No Power supply or battery backup

CiQ.420.BOOST.PRV.SAT

- 14” x 12” x 6” CiQ SCADA booster or PRV controller
- SAT communications
- 5" HMI

CiQ.420.BOOST.PRV.HYB

- 14” x 12” x 6” CiQ SCADA booster or PRV controller
- Hybrid communications
- 5" HMI

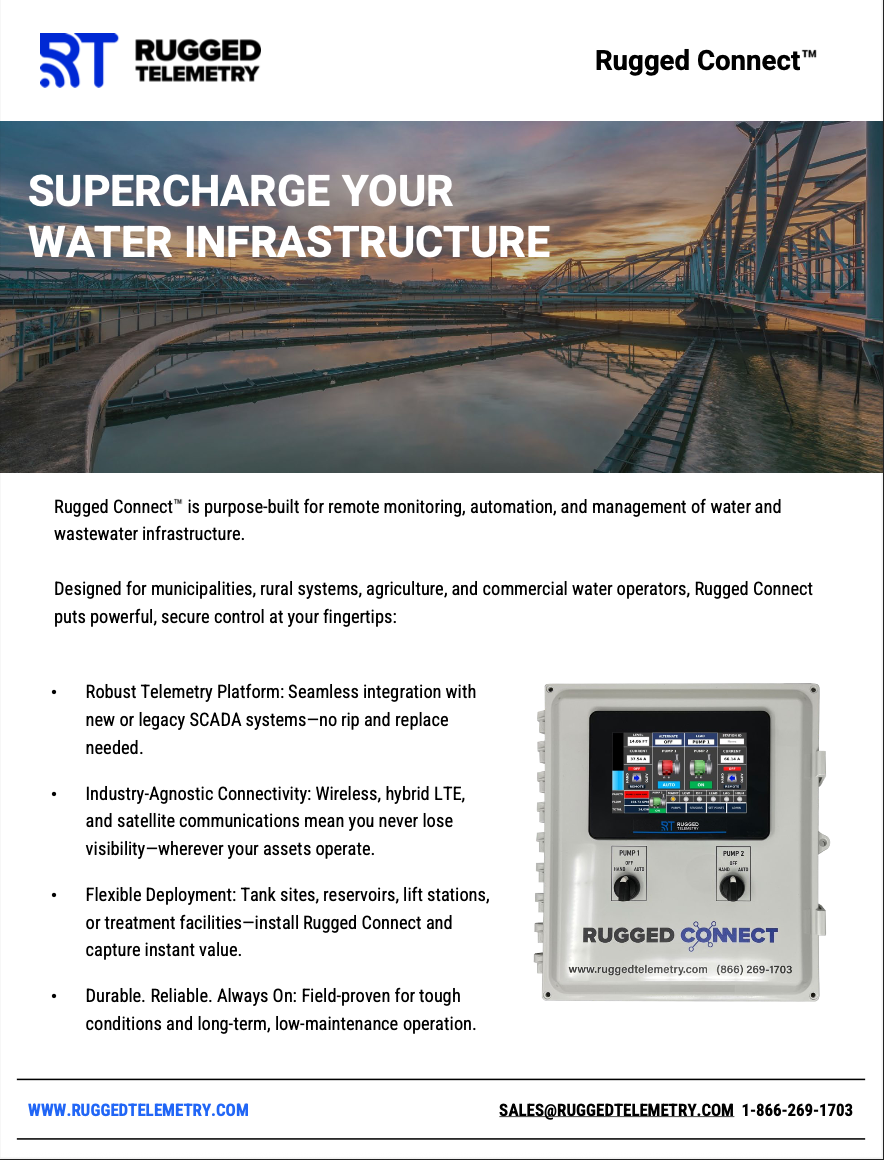

Download the data sheet

The Rugged Connect data sheet is a concise document that provides essential information about the Rugged Connect products. It offers a snapshot of the each products key specifications, features, and capabilities.

Download

Rugged Telemetry: Leaders in Water SCADA & Telemetry

The experts at Rugged Telemetry are knowledgeable on water SCADA and telemetry and willing to help. Check out our rural water and wastewater offerings to focus your search and make additional improvements to your water operations.

The excellent telemetry service offered by Rugged Telemetry can help water operators grow and find sustained success! Contact us today and get started on the path to more efficient work.
