PiQ.600 Series

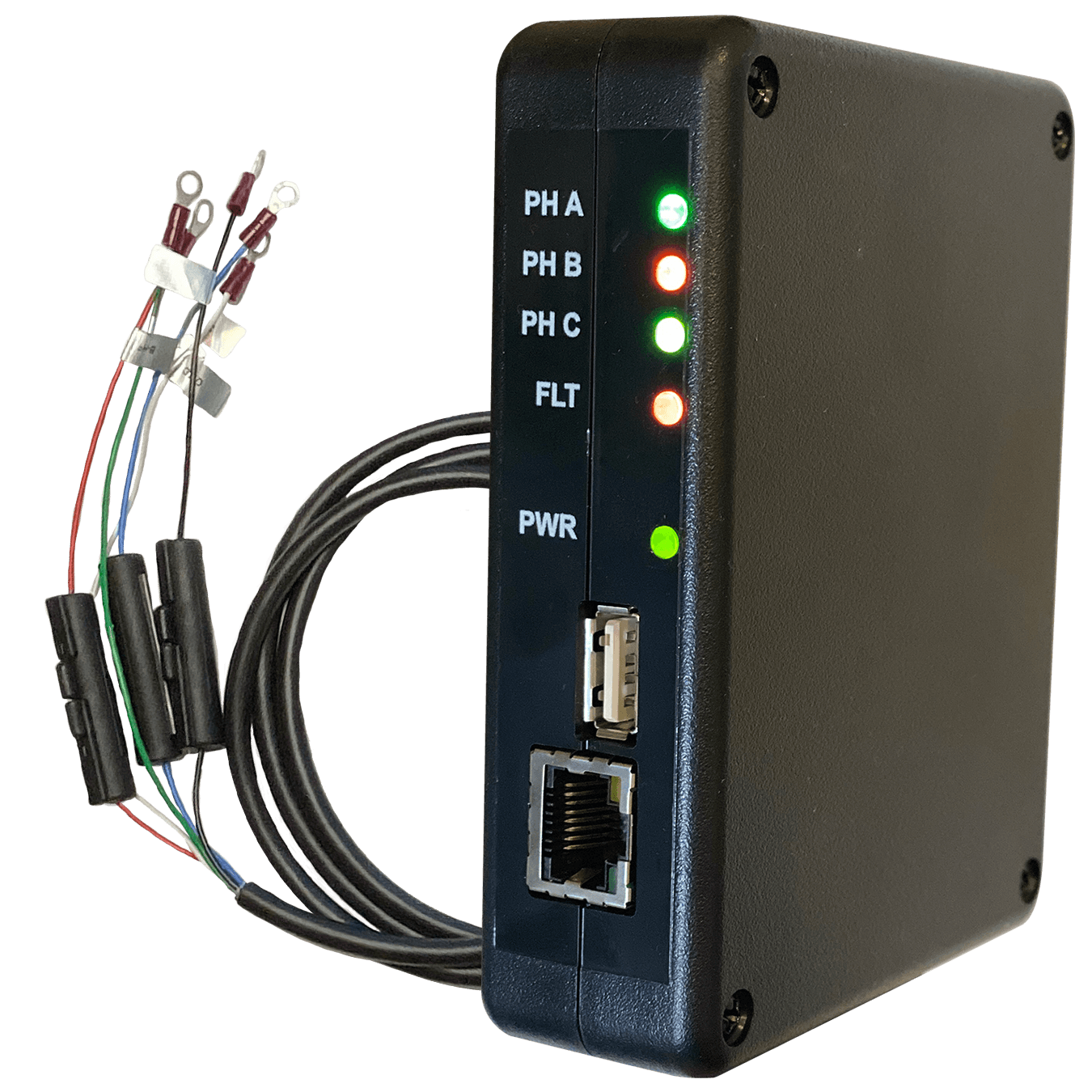

The PiQ 600 series includes products designed for the utility industry to remotely monitor 3 phase power going into commercial buildings. The product comes as a standalone box that can be mounted into any existing utility cabinet that offers DC power, or serves as  a complete solution with an AC/DC transformer and our SuperCap backup power board.

PiQ.600

Specifications

Phase monitor is configurable with typical Wye or Delta systems.

PiQ.600 uses a microprocessor based design to provide protection against phase loss, phase unbalance, undervoltage and overvoltage.

PiQ.600 communicates through an ethernet port that can be connected to a cellular bridge or router.

A software defined device that allows you to indivially set each phase for nominal voltages, Phase Loss and Phase Caution.

Multi - Color LED indicates normal condition and provides fault indication to simplify onsite troubleshooting.

Dimensions

4.50 x 3.50 x 1.25 in.
114.30 x 88.90 x 31.75 mm.

Power

Power: 9-36 VDC
Universal voltage range of 208 to 480VAC, 3-phase systems

Programming

Faults are sent via JSON to customer server or can be monitored through Rugged Telemetry platform.

Fault indicator that can be manually reset to see if a fault alert had occurred.

Mounting

DIN Rail Mountable
Fused wire harness on each Leg

PiQ.610

Specifications

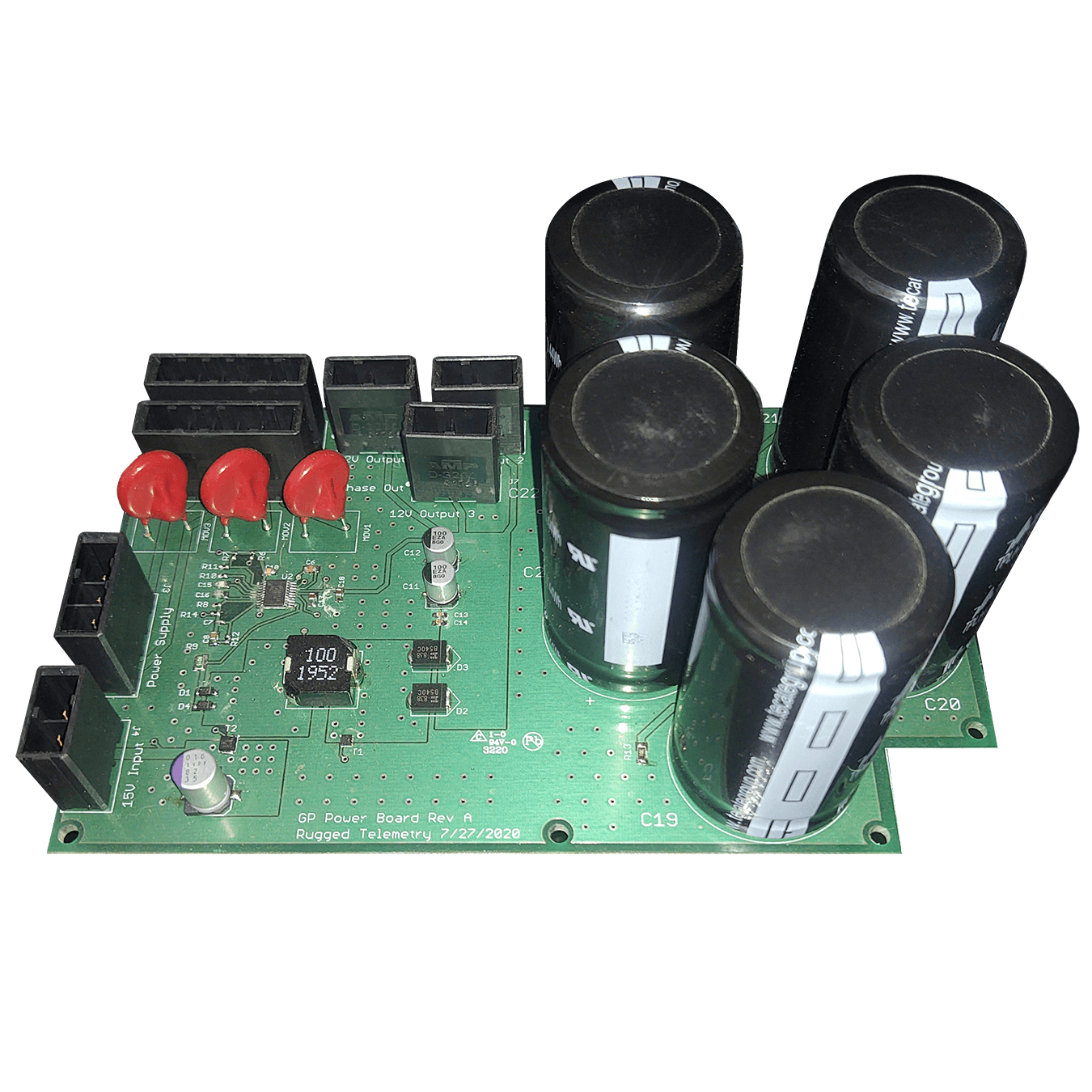

The PiQ.610 supercap backup power board is designed to take the 3 phase input power from the source you are monitoring, supply that power as a passthrough to the PiQ.600 phase monitoring device, power your AC/DC power supply that will charge the supercaps and power your communication device & PiQ.600.

3 – 12V DC Outputs -  with Supercap backup

1 – 15V DC Input

3 Phase – Power Input  L1, L2, L3, G, N

3 Phase – Power output   L1, L2, L3, G, N

AC Output – to AC/DC Power Supply

PiQ.620

Specifications

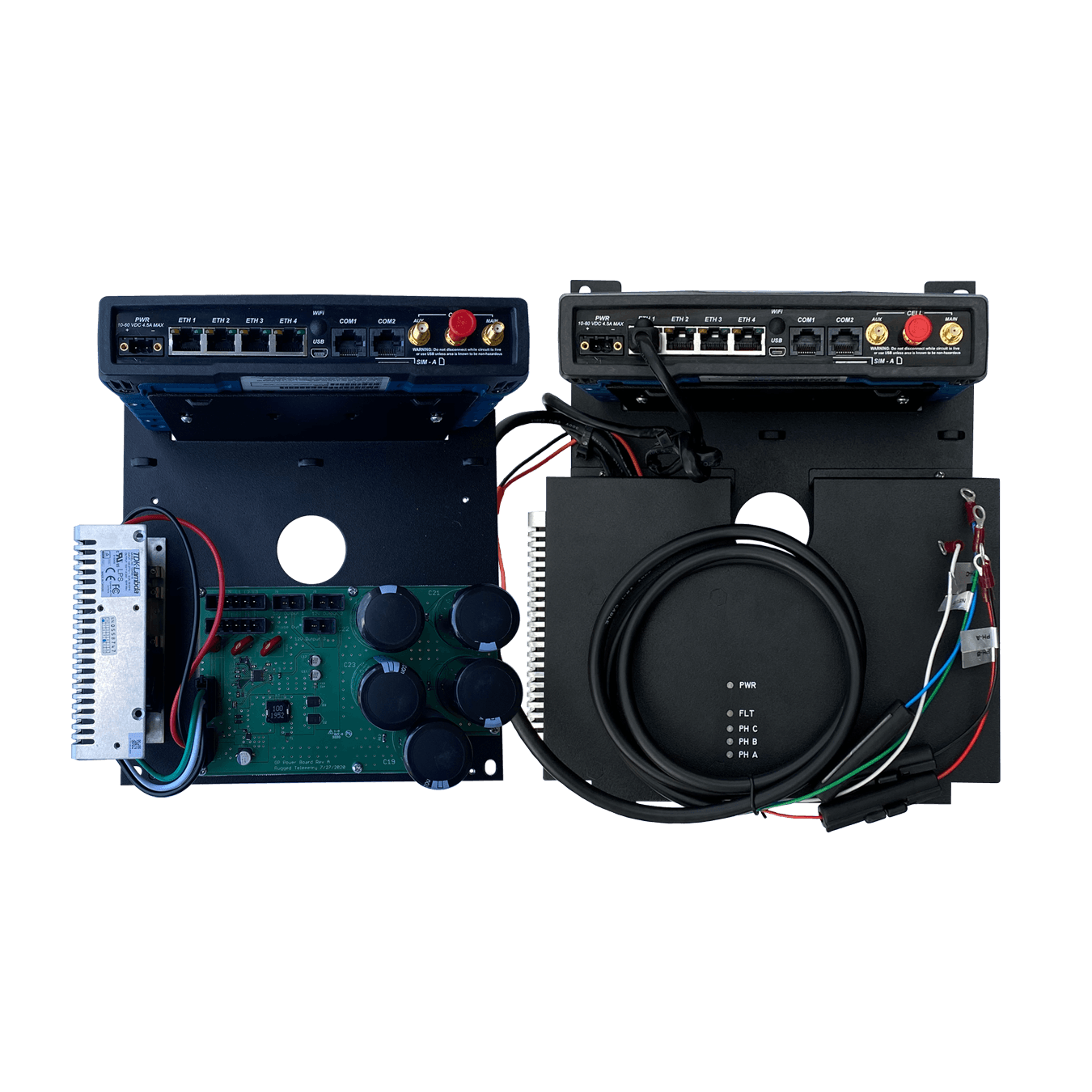

The PiQ.620 is a complete solution that combines the PiQ.600 and PiQ.610 into an enclosure that can be mounted by the utility or customer. The enclosure has a shelf that can accommodate the utilities router or router can be supplied as part of the solution.

Dimensions

4.50 x 3.50 x 1.25 in.
114.30 x 88.90 x 31.75 mm.

Power

Power: 9-36 VDC
Universal voltage range of 208 to 480VAC, 3-phase systems

Programming

Faults are sent via JSON to customer server or can be monitored through Rugged Telemetry platform.

Fault indicator that can be manually reset to see if a fault alert had occurred.

Mounting

DIN Rail Mountable
Fused wire harness on each Leg

Board Specifications

3 – 12V DC Outputs -  with Supercap backup

1 – 15V DC Input

3 Phase – Power Input  L1, L2, L3, G, N

3 Phase – Power output   L1, L2, L3, G, N

AC Output – to AC/DC Power Supply

Dimensions

14 x 12 x 6 Polycarbonate Enclosure

PiQ.600

PiQ.610

PiQ.620

Series

Description

PiQ.600

Standalone 3 phase monitoring solution that can be added to any existing enclosure. The PiQ.600 can plug into existing network and communicate to PowerIQ platform or directly to Utility.

PiQ.610

Designed to work in conjunction with the PiQ.600 the Supercap backup power board will provide power to the PiQ.600 and 2 other devices to ensure that a power outage can be reported.

PiQ.620

A complete solution ready to be deployed. The PiQ.620 comes ready to deploy a customer specified router can be mounted or can be connected directly to network.

Ordering Codes

PIQ.600

PowerIQ: 3 phase voltage monitoring - DIN Rail 4.50 x 3.50 x 1.25 in. 9-36 Volt DC

PIQ.610

PoweriQ: Supercap backup power board - 20-25 Min back up power - 3 Phase AC power pass through to AC/DC power supply 24 Volt DC Output - Direct connect to PiQ.600 & Router

PIQ.620

PoweriQ: 3 phase voltage monitoring system - 14 x 12 x 6 enclosure - includes AC/DC power supply, PiQ.600 & PiQ.610
